This guide to Lotus Tangra recessed lights in Canada is published by Simply Controlled, which supplies through Lotus-authorized distributors in Canada. Because specifiers balance glare control, beam precision, ceiling conditions, and controls, this series matters. Therefore, we outline trims, LED engines, and drivers that match either wall dimmers (Triac 120 V) or low-voltage control (0–10 V 120–347 V). It’s cETLus listed, Type IC, air-tight, and wet-location rated, with Made-in-Canada manufacturing and IES/spectrum files for submittals. In short, Simply Controlled maps the series to real rooms, ceiling heights, and control strategies—so you can specify once and be confident it will perform in Canadian conditions.

Why Lotus Tangra recessed lights beat a single-SKU choice in Canada

First, designers and electricians rarely spec one downlight for every room. Instead, Tangra’s portfolio lets you keep a consistent look—then tune trims, beams, and LED engines for each space. Additionally, you’ll match drivers to control systems without mixing brands. Meanwhile, Simply Controlled keeps variants organized at the Tangra collection and supports scene control with the RA3 Sunnata PRO Dimmer and broader Lutron Lighting Controls. Credibility: cETLus Type IC/Air-Tight/Wet listings apply across the Tangra family; this simplifies ESA/municipal review and helps preserve the air barrier.

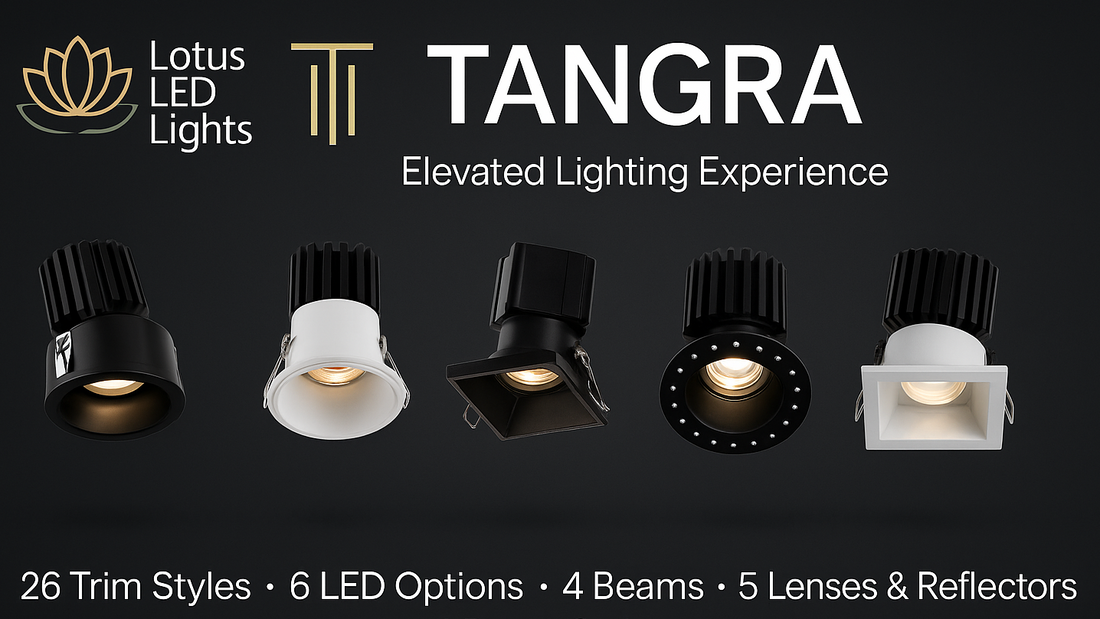

Trim styles in the Lotus Tangra recessed lights family (26)

For example, you can choose thin or wide flange; trimless/mud-in and invisible flangeless; deep-regressed for visual comfort; gimbal (including sloped variants); round and square. In addition, finishes include white, black, alzak, white-trim/black-reflector, and oil-rubbed bronze. Therefore, for compact ceilings, a 3-inch recessed gimbal keeps sightlines clean while allowing precise aim. Notably, these options ship through Simply Controlled for Canadian projects.

What’s in the Tangra Series (Multi-SKU Map)

LED engines for Lotus Tangra recessed lights (6)

Beam choices for Lotus Tangra recessed lights

Generally, core optics are 20°/36°/50°; 24°/60° on select optics. Consequently, you can tailor contrast and spacing to each room.

Lenses & reflectors

• Furthermore, choose clear, frosted, or semi-frosted lenses.
• Alternatively, use a high-efficiency lens for higher CBCP.
• Similarly, dual-colour lenses balance glare control and output.

Credibility: Beam and engine guidance align with typical IES distributions; Simply Controlled can provide IES and spectrum files upon request.

Lotus Tangra recessed lights: Key features & specs (Canada)

• Listings: cETLus, Type IC, Air-Tight, Wet location (shower-safe).
• Open plenum: FT6/CMP (select trims) for commercial ceilings.
• Made in Canada: short lead times and consistent finishes through Simply Controlled.
• Drivers: user-selectable 11 W / 15 W classes; Triac 120 V or 0–10 V 120–347 V.
• Optics: interchangeable; core 20°/36°/50° with 24°/60° on select optics.
• Finishes: white, black, and architectural metallics (availability varies).

Therefore, code labels reduce permit friction; wet-rating supports Canadian bathrooms and coastal humidity.

Design & install tips for Lotus Tangra recessed lights in Canada

• Controls: Pair Triac 120 V with wall dimmers such as the RA3 Sunnata PRO Dimmer; for deeper context explore Lutron Lighting Controls. As a result, scene control remains consistent across rooms.
• Insulation/air barrier: Type IC + air-tight supports insulated ceilings; likewise, maintain vapour-barrier integrity around trimless rings.
• Voltage drop: Keep 0–10 V runs short and separated from noise; preferably, target <3% drop at drive current.
• Cold starts & humidity: DTW engines perform well in winter entries; moreover, wet rating supports baths/saunas/covered soffits.
• Permitting (ON): ESA notification may apply for new circuits—keep cut-sheets and cETLus labels on site.
• Support/RMA: Start at our About page or contact our team for installation provider referrals.

Best pairings & scenes with Lotus Tangra recessed lights

• Dining/bedrooms: Dim-to-Warm 3000→1800 K for cosy evenings. Consequently, you get warm ambience without colour-shift surprises.
• Art & features (2.4–3.0 m / 8–10 ft): 20° on gimbal; ~1.0–1.2 m spacing. Specifically, aim the hotspot just in front of seating.
• Task: 36° over islands/vanities; then, layer pendants if needed.
• General ambient: 50° grid for even coverage; finally, trim low-end levels in your control system.
• Scenes: Program low-end trims in Lutron Lighting Controls; pair Tangra with the RA3 Sunnata PRO Dimmer.

Pricing & scopes for Lotus Tangra recessed lights

• Two line items: fixture/trim and driver.
• Retrofit vs new build: trimless/mud-in suits new drywall; flanged for retrofit.
• Comprehensive quote signals: deep-regressed/trimless and DTW price above standard 5-CCT. Accordingly, Simply Controlled will flag premium selections on quotes.
• Warranty/RMA: handled via the Tangra collection; keep serials and driver labels. Importantly, Simply Controlled provides local support.

Featured Snippet

Checklist

1. Pick trim style (flanged/trimless/regressed/gimbal; wet where needed).
2. Choose LED engine (5-CCT, 3000 K, DTW 3000→1800 K, etc.).
3. Set beam (20°/36°/50°; 24°/60° on select optics) for room height/task.
4. Select driver (Triac 120 V for scenes, 0–10 V 120–347 V for long runs).
5. Confirm ratings (cETLus, Type IC/AT, Wet) for space and insulation.
6. Pair controls (RA3 Sunnata PRO or 0–10 V keypad) and save IES/spectrum files.

FAQs

Which beam should I use for 2.4–3.0 m (8–10 ft) ceilings?

Use 50° for ambient, 36° for task, and 20° to highlight art/features. Additionally, select 24°/60° only where trims support them. Finally, keep spacing tight for 20° (~1.0–1.2 m) and wider for 50° (~1.8–2.4 m).

Are Tangra fixtures Type IC, air-tight, and wet-rated?

Yes—Tangra family fixtures carry cETLus labels with Type IC, Air-Tight, and Wet location ratings. Therefore, they support bath/shower installs and help preserve the ceiling air barrier.

Triac 120 V or 0–10 V 120–347 V—how should I choose?

Pick Triac 120 V for residential scenes and simple retrofits; it pairs with RA3 Sunnata PRO Dimmer and keeps wiring straightforward. Conversely, choose 0–10 V 120–347 V for large spaces, long runs, or mixed controls.

Can Tangra handle sloped ceilings without glare?

Yes. Specifically, use the regressed gimbal or sloped-ceiling gimbal trims. As a result, deep regress hides the source and improves visual comfort.

Where can I get IES and spectrum files?

Ask our team to provide IES and spectral plots for your exact SKU. This way, designers can model beam overlap and confirm colour quality before drywall.

What’s the warranty and returns path?

Warranty is handled through the Tangra line. For convenience, keep purchase records, driver labels, and install notes; Simply Controlled will assist with any RMA steps.

Strategic CTAs

• Quick consult (15 minutes): Unsure which beam or driver? Book with Simply Controlled and we’ll map your rooms.
• Scoped quote: Send a ceiling plan and room photos; Simply Controlled will return a Tangra take-off with driver/control notes.
• Deeper resource: Want whole-home scenes? See Lutron Lighting Controls and pair Tangra with the RA3 Sunnata PRO Dimmer.

Author & Review Credits

Author: Billy Wood — Simply Controlled

Last reviewed: 2025-11-01

Compliance & Accuracy Footnote

Specifications can vary by trim, optic, and driver. Provincial and municipal electrical rules differ; in Ontario, ESA notification may apply to new circuits. Accordingly, always use a licensed installer and follow manufacturer instructions and cETLus/Type IC/Air-Tight/Wet ratings.

In summary, if you need a Canada-ready package, Simply Controlled supplies, supports, and warrants Lotus Tangra recessed lights from design through handover.
